ECS ELITEGROUP K7S5A Pro(V5.0)
I came across a used Socket 462 (A) Athlon motherboard recently locally. Unfortunately it was non-functioning when I tested it. A visual of the capacitors confirmed some were faulty/failed. Proceeded with replacement of all electrolytic capacitors on the board:
Capacitance | Voltage | Size | Quantity |
3300uf | 6.3v | 10x25mm | 9 |
1000uf | 10v | 10x12.5 | 5 |
470uf | 16v | 8x11mm | 5 |
100uf | 25v | 6.3x11mm | 13 |
1500uf | 6.3v | 8x15mm | 6 |
10uf | 25v | 4x7mm | 5 |
22uf | 25v | 5x7mm | 3 |

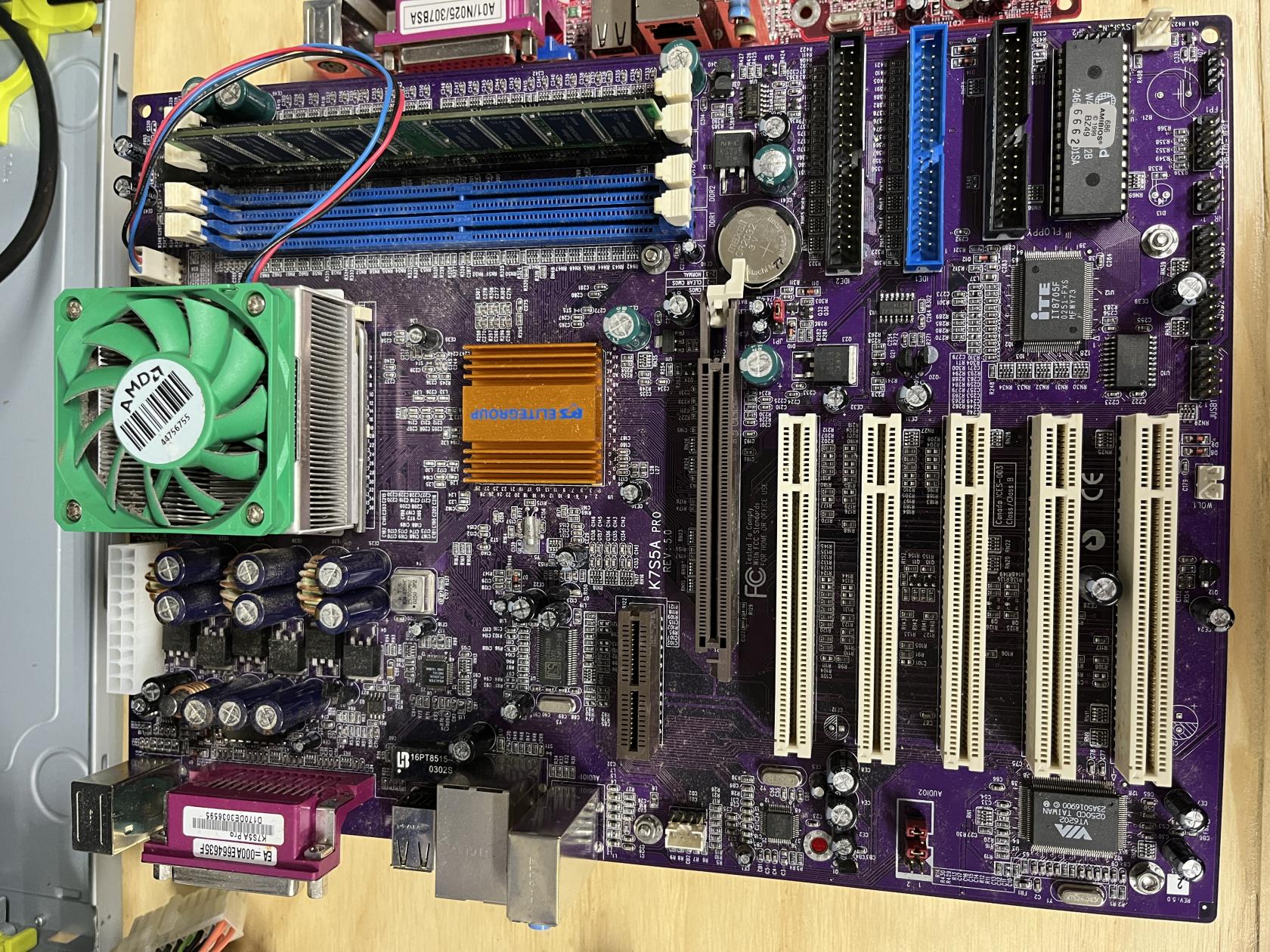

Before repair:
Ordered high quality Panasonic low ESR 105c capacitors from Mouser.
